      Insulation Tester

      Insulation Tester
      Insulation Tester
      Product Code : T- 1531 Plus
      Brand Name : JAGGI CRDI SOLUTION
      Product Description

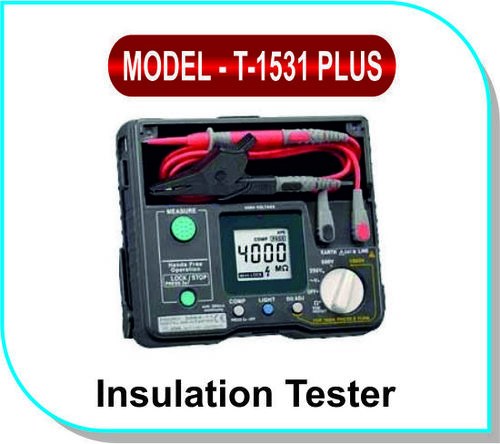

      Insulation Tester Model- T-1531 Plus

      • One body with three ranges: 250 V/500 M-ohm, 500 V/500 M-ohm, and 1000 V/4000 M-ohm
      •   New sliding cover system
      •   Insulation measurement through sight and sound
      • Checks ground wire continuity with a short current of 200mA
      •   Ability to measure AC voltage
      • Accurate digital display









      Insulation Resistance

      Insulation test voltage

      250 V DC

      500 V DC

         1000 V DC

      50 V DC

      125 V DC

      250 V DC

      500 V DC

      Measurement range*1

      4.000 / 40.00 / 400.0 / 500 / 4000(1000 V range only MW

      4.000 / 40.00 / 200.0 MW

      4.000 / 40.00 / 400.0 / 2000 MW

      1st effective range

      0.200 to 50.0 MW

      0.200 to 200.0 MW

      0.200 to 10.00 MW

      0.200 to 100.0 MW

      2nd effective range

      0 to 0.199 / 50.1 to 500 MW

      0 to 0.199 / 200.1 to 4000 MW

      0 to 0.199 / 10.01 to 200.0 MW

      0 to 0.199 / 100.1 to 2000 MW

      Accuracy

      1st effective range:±3 % rdg±4 dgt.  / 2nd effective range:±5 % rdg.±5 dgt.

      Voltage with no load

      Not more than 1.2 rated measurement voltage

      Short circuit current

      1.2 mA max.

      Response time

      to center, to 0 MW within 5 s (within accuracy range)

      Low resistance

      (continuity)

      Measurement range: 40.00 / 400.0 / 4.000 k / 40.00 k / 400.0 k / 4.000 MW    Short circuit current: 200 mA

      Accuracy:±3 % rdg.±6dgt. (±5 % rdg. ±6dgt. at 400 kW range or higher), Open terminal voltage: 4 to 6 V, Response time: 5 s max..

      AC voltage

      Display indication range: 0 to 750 V, Accuracy:±3 %rdg.±6 dgt.(up to 600V), Frequency range: 50 / 60 Hz, Input impedance: 100 kW




      ·         Other functions: Insulation and low resistance mode - comparator, measurement value hold; Insulation resistance mode - auto           discharge Insulation and AC voltage mode - live wire warning (when voltage of 70V±10V exists across measurement  terminals);
                Low resistance   mode - zero adjust; All measurement modes - battery indicators, auto power save
      ·         Display: Semi-transparent LCD, "4000" count
      ·         Display update rate: 2 times / second
      ·        Load protection(10 s): Insulation resistance mode - 600 Vrms (1000 V range; 1200 Vrms); AC voltage mode - 800 Vrms;   Low resistance / continuity mode - 600 Vrms(fuse protection)
      ·         Safety standard: EN61010-1 CAT III 600 V
      ·         EMC standard: EN61326-1
      ·         Ambient temperature range for use: 0 to 40C (32to 104F), 90% rh or less (no condensation)
      ·         Ambient temperature range for storage: -20 to 50C (-4F to 122F), 90% rh or less (no condensation)
      ·         Power source: R6P manganese battery 4 or LR6 alkaline battery 4
      ·         Dimensions and Mass: Approx. 175 (6.9") W 148 (5.9") H 56 (2.3" ) D mm; Approx. 530 (18.7 oz.) (with display cover   closed)
